Quickblock Tactical Training Solutions
Quickblock is a modular, easy-to-use building system delivered in flat-pack form, ideal for rapid assembly and disassembly in various tactical training, infrastructure and force protection scenarios. Quickblock has reimagined how training environments are created, offering ground-breaking solutions that empower defense forces to prepare for the challenges of today’s dynamic battlefield. Trusted by esteemed military units for Close Quarter Battle (CQB), Fighting In a Built-Up Area (FIBUA), Urban Warfare, or Trench Warfare training.
Quickblock delivers unique versatility, affordability, and ease of use.
TRAINING PACKAGES

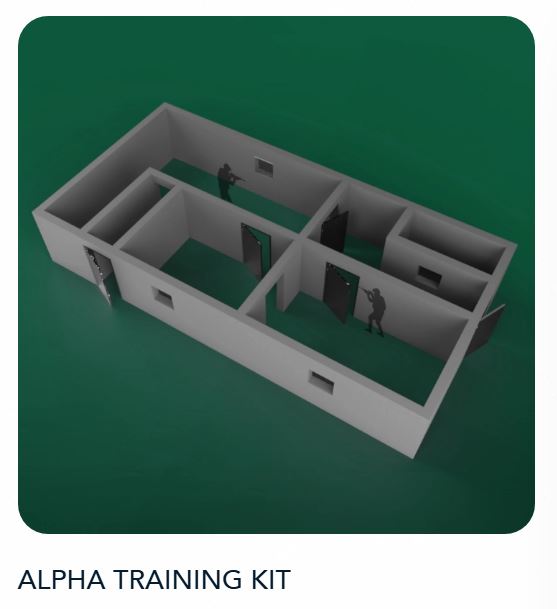

Alpha Training Kit: 6 rooms, 5 doors, and 4 windows that can be customized to create dynamic scenarios tailored to smaller-scale CQB or Shoothouse needs.

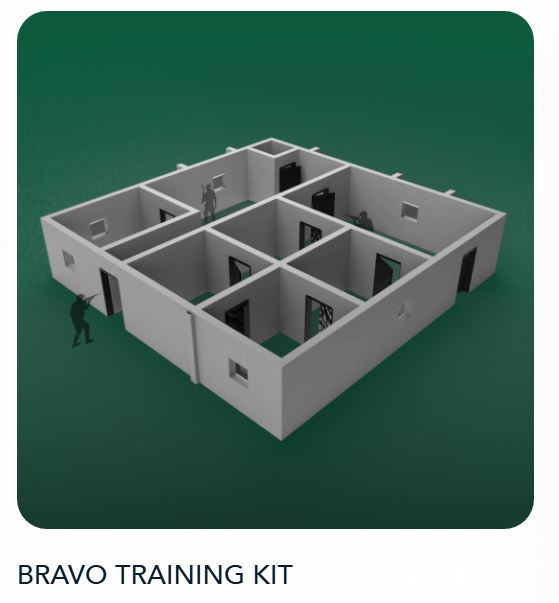

Bravo Training Kit: 8 rooms, 10 doors, and 6 windows. Its flexible design allows you to create complex scenarios with multiple rooms, hallways, open spaces, and storage areas, tailored to a wide range of CQB / FIBUA / Shoothouse training exercises.

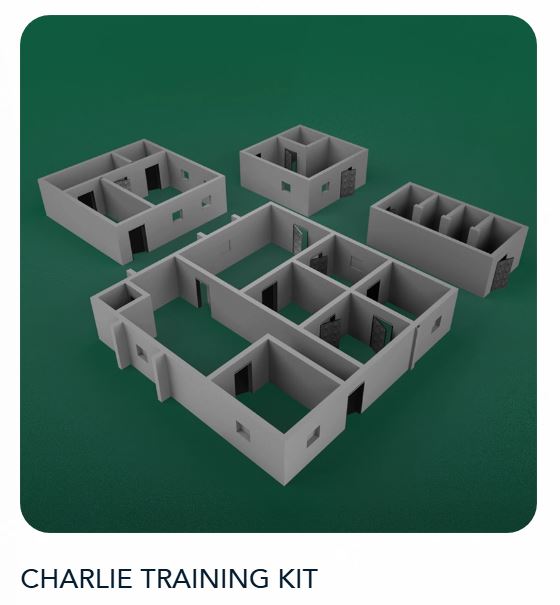

Charlie Training Kit: Featuring 1 compound (comprising of 4 buildings), 15 rooms, 17 doors, and 13 windows. Designed for maximum changeability, it creates an intricate training environment with highly complex building layouts, offering endless opportunities to master advanced tactical skills.
All the Quickblock packages can be reconfigured to suit training requirements, infinitely.
KEY FEATURES
Easy to use, intuitive design means anyone can build with Quickblock.
Made from 100% recycled plastic.
Less than 1.2kg (2.6-Lbs.) per block.
Flat-packed in deployment (250 blocks on NATO pallet).
Ballistic resistance across multiple weapons when tested with sand and aggregate infill.
Multi-hit performance.
Blast Resistance: Successfully tested with 60mm mortar.
Patented cell structure means damage is isolated to one part of the structure. Blocks can be replaced.
Training Required: 1 minute video tutorial available or simple instruction manual.
AVAILABLE COLORS: Olive Green, Light Gray
VERTICAL LOAD BEARING
Max Load: 1.6t (16.4kN)
HORIZONTAL COMPRESSION
Max Load: 0.36t (3.6kN)
MATERIAL MECHANICAL PROPERTIES
Tensile Strength: 28 MPa
Tensile Elongation: >150%
Tensile Modulus: 1241 MPa
Flexural Strength: 41 MPa
Flexural Modulus: 1379 MPa
Rockwell Hardness / R Value: 90
